High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off

Place of Origin : Hubei, China

Brand Name : CHUANCHU

Model Number : HT.QDQ413F-16P

Working Voltage : /

Flow Rate : /

Warranty : 12 Months

Certificate : /

Type : Valve

Product Name : Lined Plastic Pneumatic Bottom Valve

Material : Stainless steel/F46

Nominal Pressure : 0.6MPa

Medium : Chemical material

Seal material : Viton,PTFE

Package : Carton

Customized Support : ODM,OEM,OBM

Use : Chemical

Application : Tanker Truck

Price : $700/pieces 1-9 pieces

MOQ : 1

Supply Ability : Meet large-scale orders

Packaging Details : Wooden box

Delivery Time : 7-30 days

Payment Terms : T/T

Contact Now

High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve
Product Description
The Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve is installed inside tanks to maintain sealing capability even when pipelines or valves are damaged. This safety feature enhances transportation reliability. The valve body is constructed from carbon steel using precision casting for durability and easy maintenance.
Key Features
  • Optimized structural design for maximum flow capacity with precision-cast construction
  • Acid-washed surface treatment provides superior corrosion and wear resistance
  • Full lining design for extended service life
  • Safety breakaway mechanism activates at impacts exceeding 1000J, maintaining tank integrity and preventing leaks
Product Name Pneumatic Emergency Bottom Valve
Main Material Stainless Steel/F46
Nominal Diameter DN100
Nominal Pressure 0.6MPa
Design Temperature -20ºC ~ +120ºC
Weight 21kg
Medium Chemical material
Flange Size 6"
Seal Material Viton, PTFE

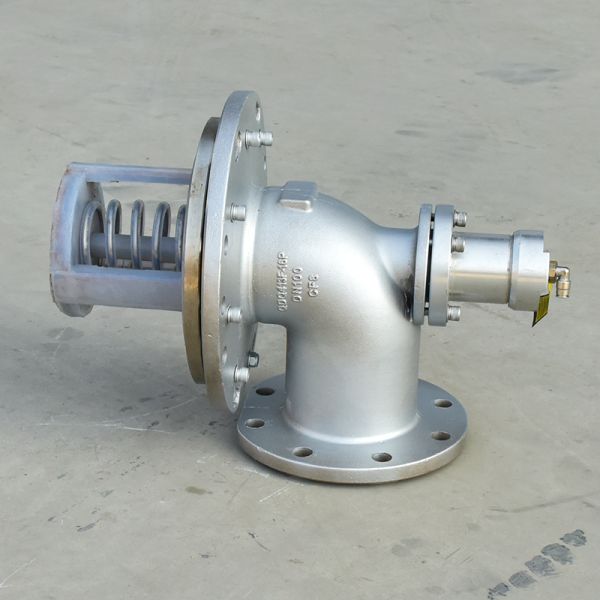

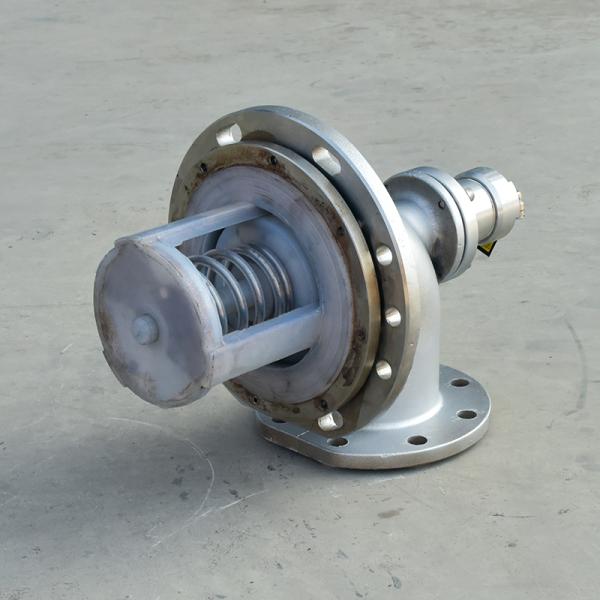

Product Images
High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off
Company Information
High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off
Certifications
High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off
Packaging & Shipping
High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off High Flow Rate Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve for Emergency Shut-off
Frequently Asked Questions
Are you a trading company or manufacturer?
We are the factory.
Can I have my own logo on the product?
Yes, we can apply your logo according to your specifications (additional costs may apply).
How long have you worked in this field?
Over 15 years of manufacturing experience.
What's the delivery time?
Standard products ship within 7-10 days after payment confirmation.
Can you produce according to our drawings or samples?
Yes, we can manufacture custom products based on your specifications.
